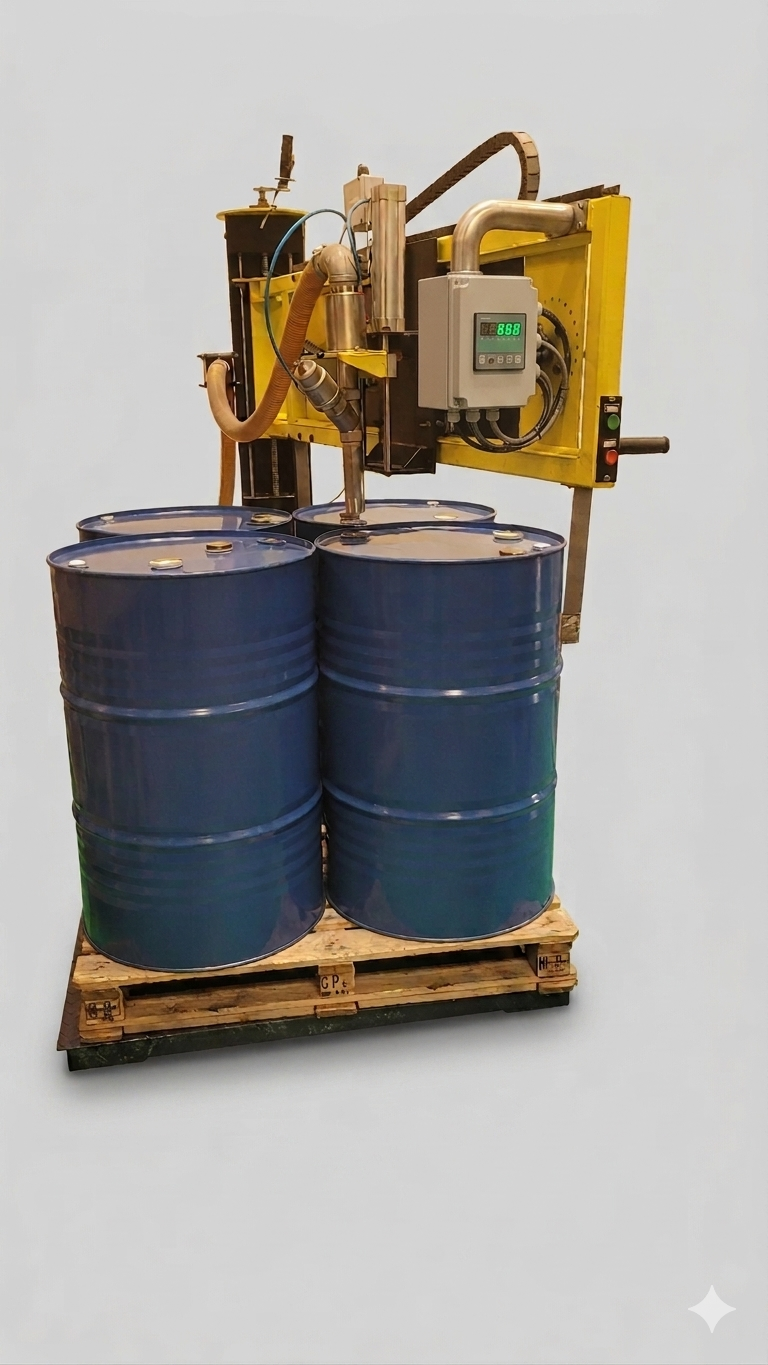

High-Precision Automatic Four-Drum Filling System

Advanced liquid packaging solutions for industrial efficiency — synchronized filling technology for high-volume chemical and industrial applications.

QDF-200 Series

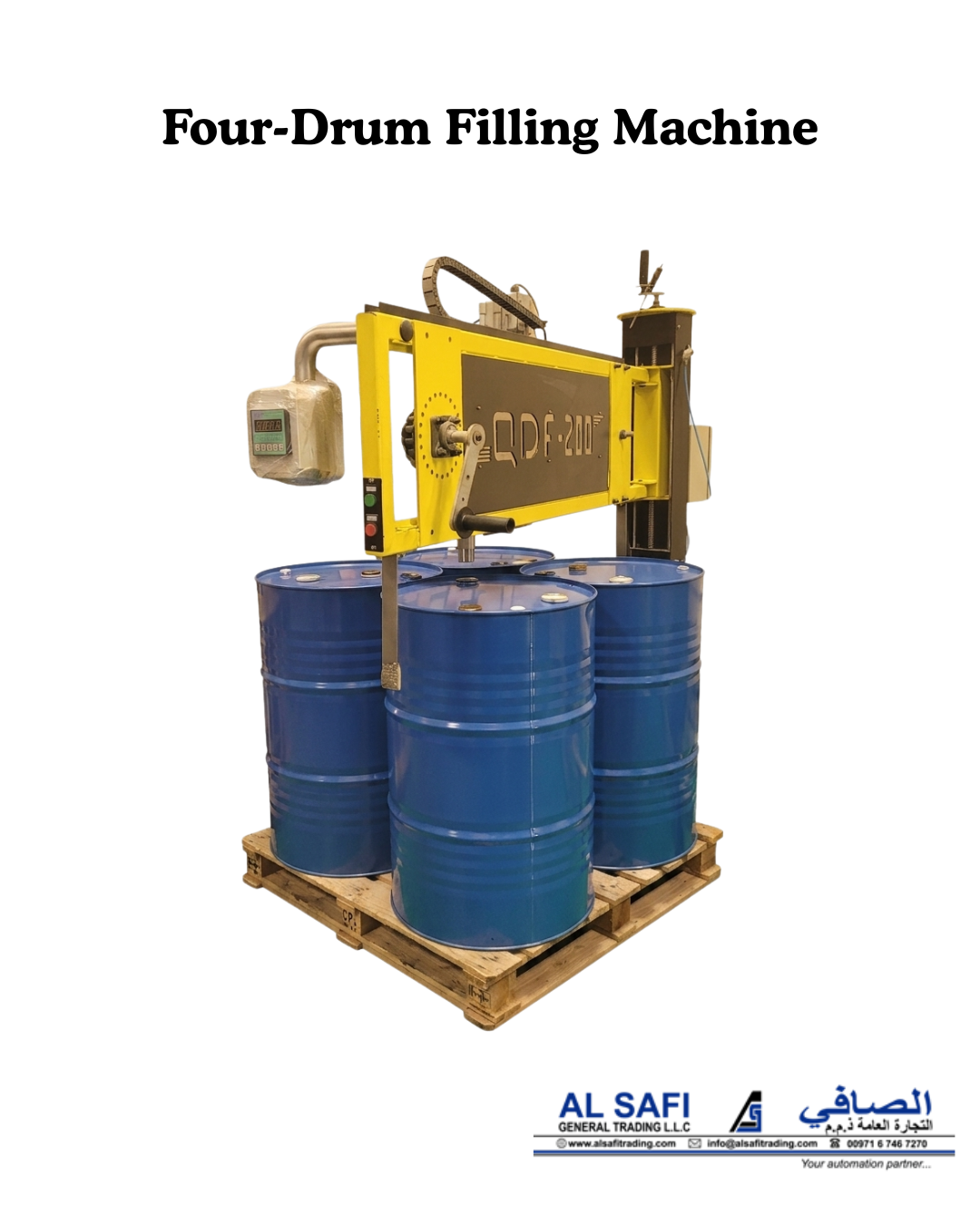

Four-Drum Filling Machine

Fill four 200 L drums simultaneously · Load-cell weighing · Chemical & industrial liquids

Filling range
50 L – 250 L per drum
Capacity
Up to 40–60 drums per hour (liquid dependent)
Accuracy
± 0.1% – 0.2% of target weight
Material
304 / 316L stainless steel wetted parts
Enquire on WhatsApp Contact form

Why choose our four-drum system?

Designed for high-volume chemical and industrial liquid filling. The system optimizes floor space while maximizing output through synchronized filling technology.

  • Maximum throughput — Fill four 200 L drums simultaneously on a single pallet.
  • Safety first — Integrated overflow protection and fume extraction options.
  • Durable construction — High-grade industrial materials for 24/7 operation.
  • Precision accuracy — Load-cell technology ensuring ± 0.2% accuracy per drum.

Technical specifications

Feature Specification
Machine model QDF-200 Series
Filling range 50 L – 250 L per drum
Capacity Up to 40–60 drums per hour (liquid dependent)
Accuracy ± 0.1% – 0.2% of target weight
Power supply 220 V / 380 V, 50–60 Hz
Air consumption 0.5 – 0.7 MPa
Material 304 / 316L stainless steel wetted parts

Control interface

  • PLC integration — User-friendly touchscreen interface.
  • Presets — Save up to 50 unique product recipes.
  • Connectivity — Optional data logging and Ethernet ports for remote monitoring.
Four-drum filler control panel with digital touchscreen
Intuitive digital interface — PLC touchscreen for recipe control and monitoring.

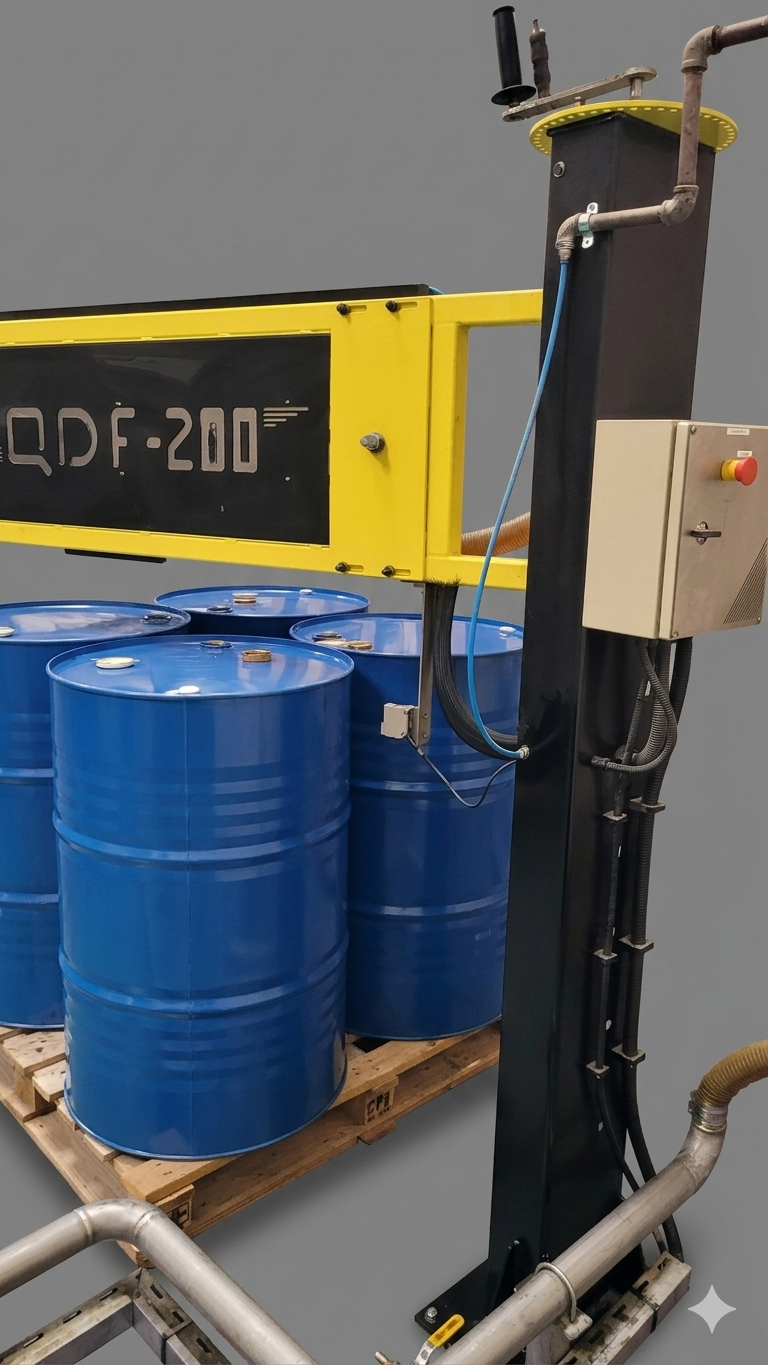

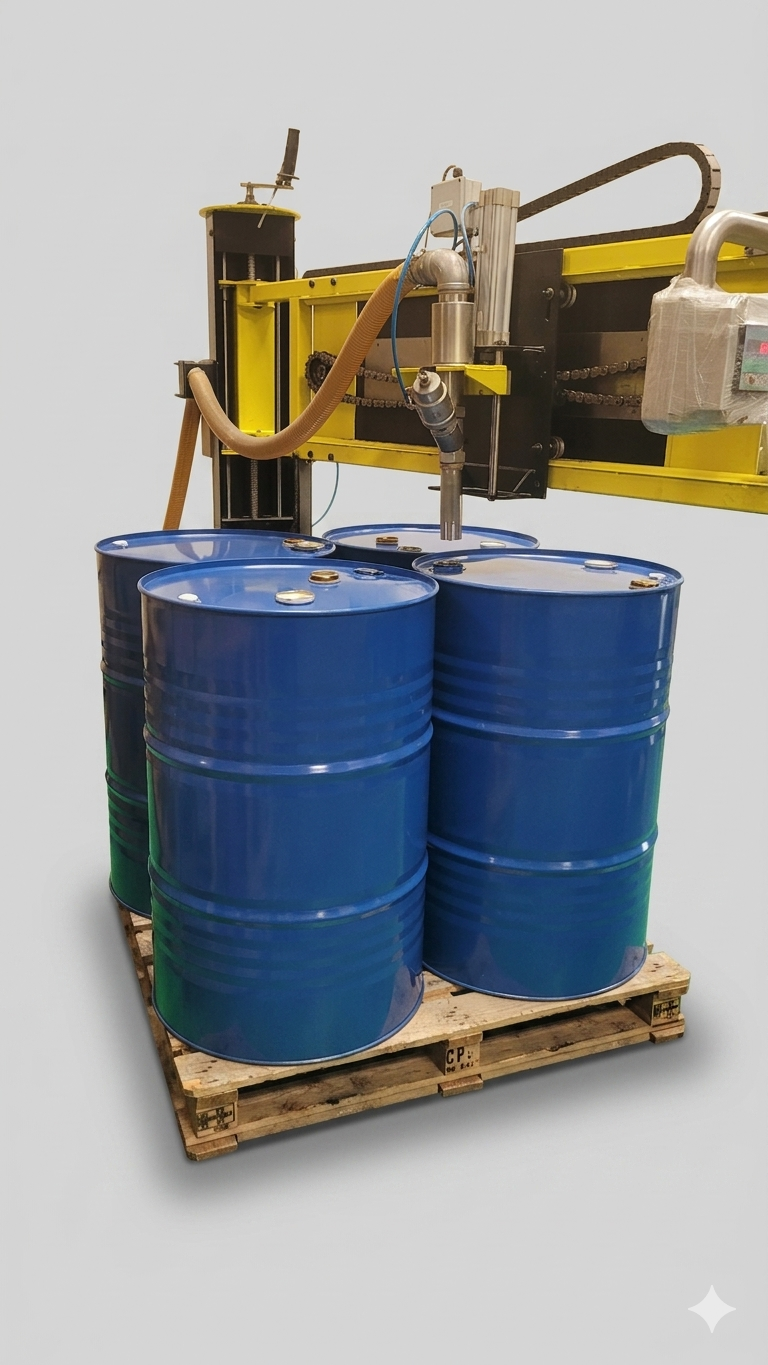

Side profile of four-drum filler showing lance alignment with drum openings
Precision alignment — Filling lances aligned with drum openings for clean, repeatable fills.

Engineered for minimal downtime

  • Quick-clean design — No-tool disassembly for fast product changeovers.
  • Local support — Access to specialized technicians and spare parts across the UAE.
